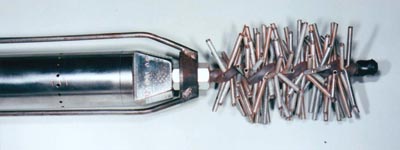

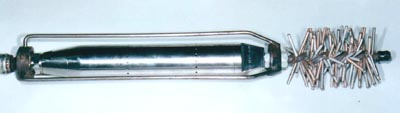

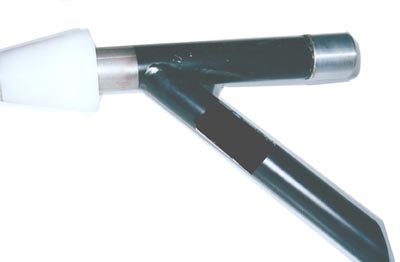

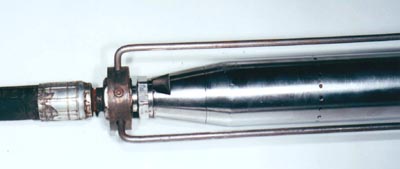

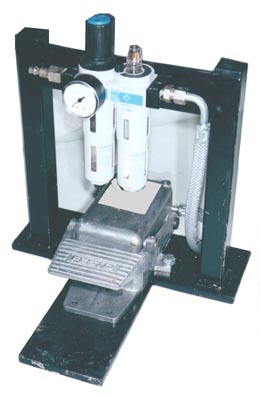

DESCRIPTION Details from the ROBOTUBE machine, non rotating machine, used in smoke-tube boilers soot removal. Machine body with centering tool Zoom Detail from the nose Zoom Detail from the back of the machine Zoom Special adapter for aspirators Zoom  SPECIFICATIONS The ROTOTUBE machine : It is light : less than 2 kilos. It is self propelled inside the pipes. Thanks to an original compressed-air system It is highly efficient : its progression speed inside a normally dirty pipe is of 12 meters/minute with a 5 bars pressure. It is very efficient: the brushes specially designed, have a diameter exactly adapted to that of the pipes needing cleaning. It is able to operate in any pipe with a diameter between 40 and 150 millimeters. It notably improves working conditions: no more physical efforts and dust emissions. A special adapter allows plugging an aspirator that collects the dusts as the machine moves inside the pipe. Delivered with : A 10 meters long armored hose. A stand set - filter pressure regulator - lubrifier, one centering-tool. 2 brushes. 1 storage box. 1 special aspirator adapter. 5 liters of lubricating oil. Stand set - filter - regulator - lubrifier - control pedal Zoom  DIAMETER CHOICES The choice for the brushes and centering-tools' diameter according to the diameter of the pipes. Click on the icon to zoom in on the graph Zoom
